Anbieter: TCI
LED Driver big, Universal
66,13 €109,90 €39% OFF
Beschreibung

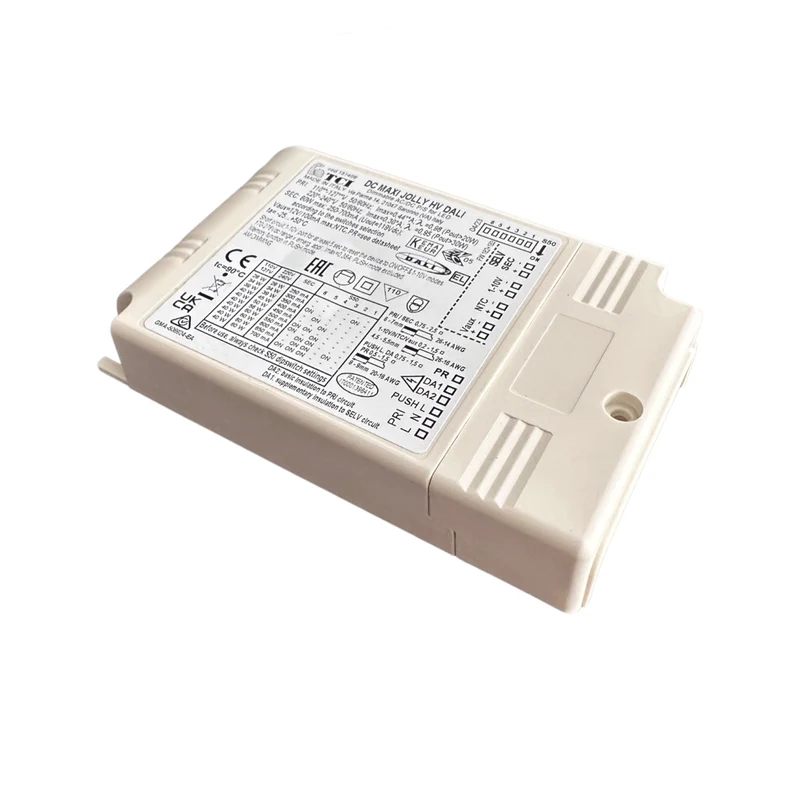

LED Driver big, Universal
Länge: 12,4cm, Breite: 7,9cm, Höhe: 2,2cm, Eingänge: 1 x 230V,
Version Dali/Push 350-1050mA
| Dip-SW | Leistung | Spg. sek | Strom sek |
| Stellung 1 | 25 W | 2...74 V max. | 350mA const. |
| Stellung 2 | 35 W | 2...72 V max. | 500mA const |
| Stellung 3 | 39 W | 2...72 V max. | 550mA const |
| Stellung 4 | 46 W | 2...72 V max. | 650mA const |
| Stellung 5 | 50 W | 2...72 V max. | 700mA const |
| Stellung 6 | 54 W | 2...72 V max. | 750mA const |
| Stellung 7 | 60 W | 2...70 V max. | 850mA const |
| Stellung 8 | 60 W | 2...66 V max. | 900mA const |
| Stellung 9 | 60 W | 2...60 V max. | 1,00A const |
| Stellung 10 | 60 W | 2...57 V max. | 1,05A const |
Version Dali/Push/1-10V, 250-700mA
| Dip-SW | Leistung | Spg. sek | Strom sek | # LED |
| Stellung 1 | 28 W | 20...112 V | 250mA const. | max 30 |
| Stellung 2 | 34 W | 20...112 V | 300mA const | max 30 |
| Stellung 3 | 39 W | 20...112 V | 350mA const | max 30 |
| Stellung 4 | 45 W | 20...112 V | 400mA const | max 28 |
| Stellung 5 | 50 W | 20...112 V | 450mA const | max 27 |
| Stellung 6 | 56 W | 2...112 V | 500mA const | max 25 |
| Stellung 7 | 60 W | 2...110 V | 550mA const | max 22 |
| Stellung 8 | 60 W | 2...100 V | 600mA const | max 20 |
| Stellung 9 | 60 W | 2...92 V | 650mA const | max 20 |
| Stellung 10 | 60 W | 2...86 V | 700mA const | max 18 |
